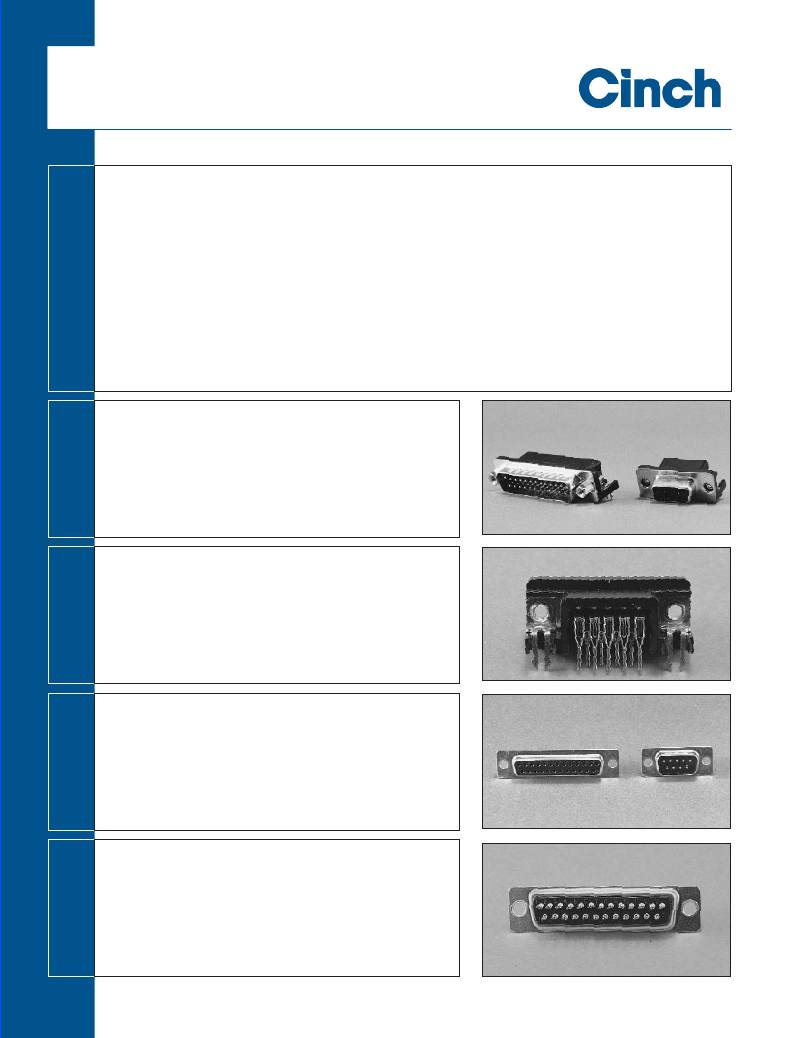

D-subminiature Metal Shell
Right-Angle and Vertical PCB
D*KL Series
■ Offered in right-angle or vertical PCB mount versions.
■ Available with gold flash or 30μin. gold plating.
■ Metal Shell provides grounding and shielding capability.
■ Approvals:
? UL Recognized: File E130965.
? CSA Approved: File LR97981.
■ See pages 4-5 thru 4-10 for standard dimensions, contact arrangements, and panel
mounting specifications.
Insulator Material: Glass-filled polyester (black),
UL 94V-O rated
Contact Material: Socket - Phosphor bronze (stamped)
Plug - Brass (stamped)
Contact Plating: Gold flash or 30μin. gold in mating area and
tin/lead on tails. All over nickel.
Metal Shell: Steel with tin plating (grounding indents on plug)
Operating Temperature: -55°C to +125°C
Shock: 50G peak per MIL-STD-202, Method 213, Condition G
Vibration: 12 cycles in three perpendicular directions @
10-2000Hz, per MIL-STD-202, Method 204,
Condition D
Moisture Resistance: 90-95% relative humidity @ 40°C for 96
hours per MIL-STD-202, Method 103
Withstanding Voltage:
Current Rating:
Contact Resistance:
Insulation Resistance:
Right Angle - minimum AC 1250V
RMS @ sea level, Vertical -
minimum AC
1000V RMS @ sea level
5 Amps
15 milliohms maximum
5000 megohms maximum (initial);
1000 megohms (minimum) after
environmental testing
Individual Contact Insertion and
Separation Force (minimum/maximum): 0.7 oz./12 oz.
Durability: 500 mating cycles
Call Toll Free: 1 (800) 323-9612
4-12
